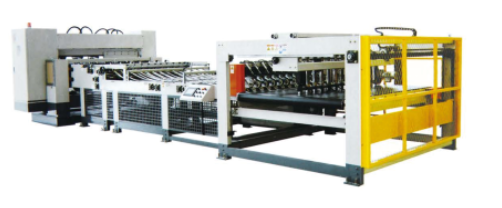

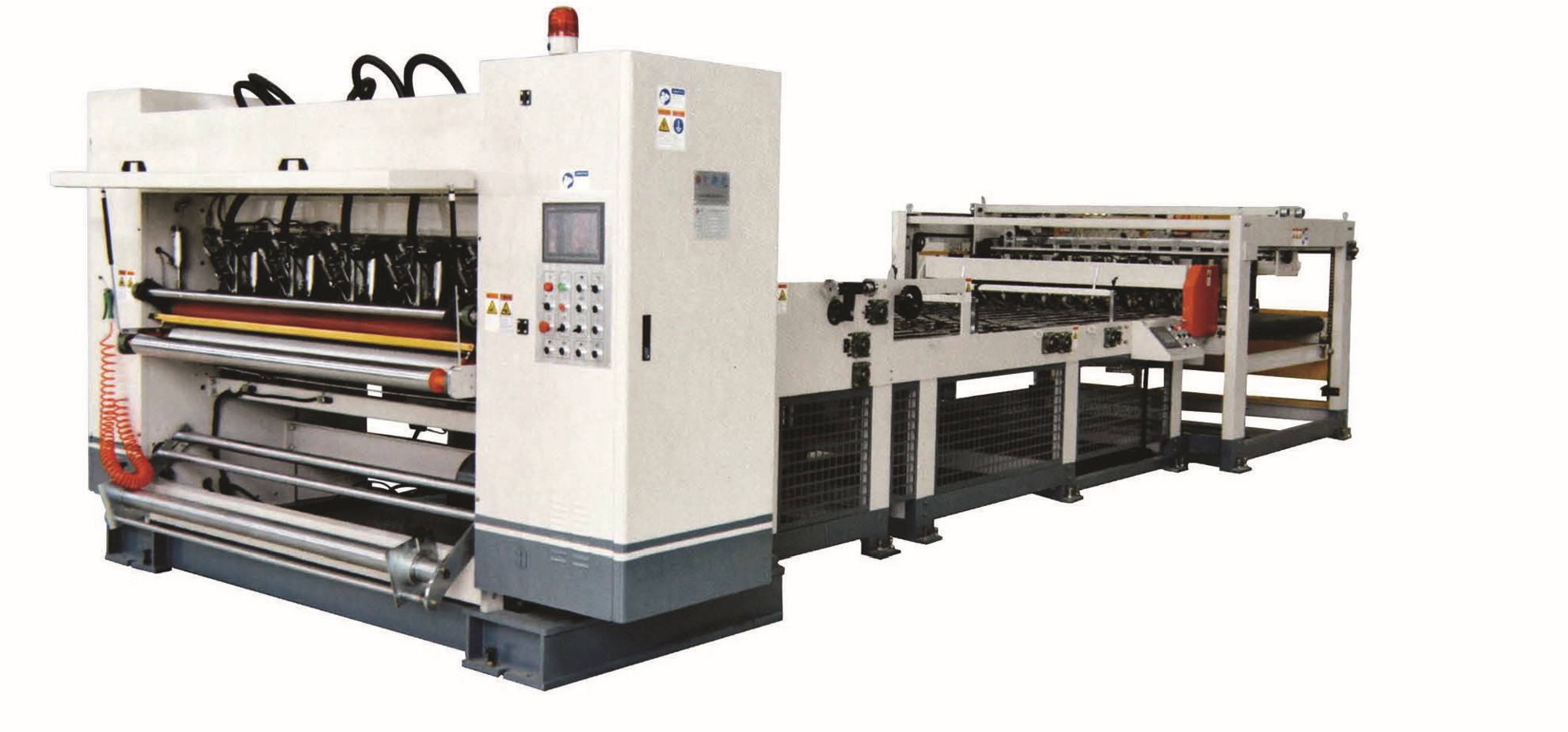

COMPUTER 2 PLY CORRUGATED CUTTING AND SLATTER
Use and Characteristics
- Effictive width: 1600-2200mm
- Maximum speed: 150m/min
- The number of slitting knives: 5
- Minimum slitting width: 180mm
- Cutting time: 3-8s
- Blade accuracy: 0.5mm
- Cross-cutting lenght: 300~9999mm
- Crosscutting accuracy: 1mm (constant speed)
- Stacking height: 250~600mm (according to customers’needs)
- Maximum carton length: 1600mm
- Constant tension paperboard conveying speed is strictly synchronized with the speed of the single-side machine.
- Alloy steel thin knife slitting, automatic grinding knife, blade life long, cutting quality high.
- Single servo control with longitudinal cutting knife, the list is fast, accurate and reliable.
- Adjust the speed inverter motor and frequency converter, adjust the speed of the board.
- The position of the left and right suction side of the blade should be adjusted with the edge tool.
- The crosscutting cabinet adopts high quality casting, strict aging treatment, precise processing, and long-term stable operation of the equipment.
- Alloy steel seamless steel tube spiral cutter shaft, economic processing, dynamic balance correction, high rigidity, small inertia.
- Crosscutting knife USES the German kobe communication servo controller
